Plant Shoot Tip Cryopreservation Protocol

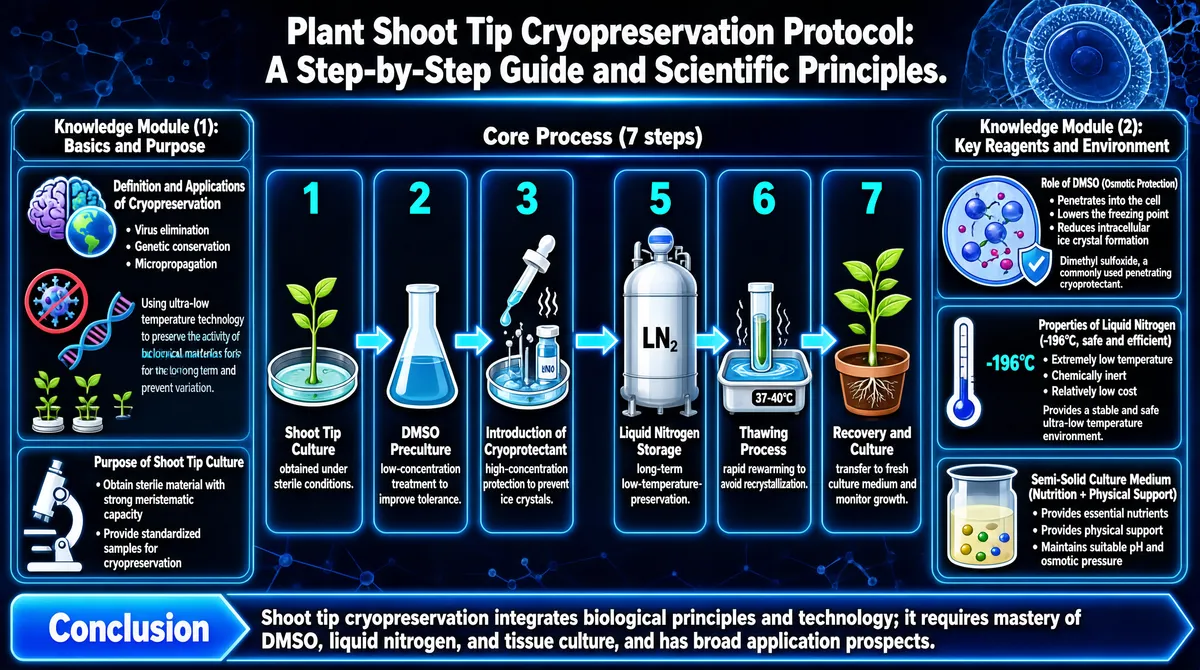

This infographic uses a deep blue technology-style background, titled "Plant Shoot Tip Cryopreservation Protocol: A Step-by-Step Guide and Scientific Principles." It adopts a modern gradient blue backdrop, glowing borders, and network-like textures, with a semi-transparent cell structure pattern embellishing the upper-right corner. The overall layout is clear and logically rigorous, divided into three main modules: on the left, "Knowledge Module (1): Basics and Purpose"; in the middle, "Core Process (7 steps)"; on the right, "Knowledge Module (2): Key Reagents and Environment"; and at the bottom, a "Conclusion" section. **Title and overall layout:** The main title is at the top center in bold white text, with a glowing blue horizontal line below it. The content area is divided into three columns, with the left and right columns being knowledge modules and the middle column the core flowchart. At the bottom is a summary conclusion bar, with an arrow-shaped blue label highlighting the word "Conclusion." --- **Knowledge Module (1): Basics and Purpose** This module is on the left and contains two subsections: 1. **Definition and Applications of Cryopreservation** - Icons: in the upper left, a combined brain-and-globe icon; in the lower right, a DNA double helix and seedling icon. - Text content: - Virus elimination (with a virus prohibition icon) - Genetic conservation (with a DNA icon) - Micropropagation (with an icon of three seedlings) - Caption text at the bottom: "Using ultra-low temperature technology to preserve the activity of biological materials for the long term and prevent variation." 2. **Purpose of Shoot Tip Culture** - Icon: a microscope icon. - Text content: - Obtain sterile material with strong meristematic capacity - Provide standardized samples for cryopreservation --- **Core Process (7 steps)** Located in the central area, presented as a horizontal flowchart, with each step equipped with an illustration, step number, title, and brief description, connected by blue arrows to form a clear sequential flow. 1. **Shoot Tip Culture** - Illustration: a green seedling in a petri dish. - Description: obtained under sterile conditions. 2. **DMSO Preculture** - Illustration: an Erlenmeyer flask containing liquid. - Description: low-concentration treatment to improve tolerance. 3. **Introduction of Cryoprotectant** - Illustration: a dropper adding liquid into a vial, with a steaming container beside it. - Description: high-concentration protection to prevent ice crystals. 4. (Unnumbered, but serving as a process link) → the next step is preparation before liquid nitrogen storage; the diagram does not directly label it, but an arrow leads to step 5. 5. **Liquid Nitrogen Storage** - Illustration: a liquid nitrogen tank labeled "LN₂." - Description: long-term low-temperature preservation. 6. **Thawing Process** - Illustration: a test tube placed in a water bath, with the temperature marked as "37-40°C." - Description: rapid rewarming to avoid recrystallization. 7. **Recovery and Culture** - Illustration: a seedling in a pot, with a root system. - Description: transfer to fresh culture medium and monitor growth. --- **Knowledge Module (2): Key Reagents and Environment** Located on the right, containing three subsections: 1. **Role of DMSO (Osmotic Protection)** - Illustration: a schematic of cell structure showing molecules penetrating into the cell. - Text content: - Penetrates into the cell - Lowers the freezing point - Reduces intracellular ice crystal formation - Supplementary note: "Dimethyl sulfoxide, a commonly used penetrating cryoprotectant." 2. **Properties of Liquid Nitrogen (-196°C, safe and efficient)** - Illustration: a thermometer showing "-196°C," beside a shield icon (with a checkmark). - Text content: - Extremely low temperature - Chemically inert - Relatively low cost - Supplementary note: "Provides a stable and safe ultra-low temperature environment." 3. **Semi-Solid Culture Medium (Nutrition + Physical Support)** - Illustration: a flask containing liquid with colored particles. - Text content: - Provides essential nutrients - Provides physical support - Maintains suitable pH and osmotic pressure --- **Conclusion** Located at the bottom within a long blue label, in white text: "Shoot tip cryopreservation integrates biological principles and technology; it requires mastery of DMSO, liquid nitrogen, and tissue culture, and has broad application prospects." --- **Visual and data encoding methods:** - A unified blue palette and glowing effects enhance the sense of technology. - All steps are numbered and paired with intuitive illustrations for easy understanding. - Key terms such as "DMSO," "LN₂," "37-40°C," and "-196°C" are clearly labeled. - Icons are used to support the explanation of concepts (such as viruses, DNA, microscopes, thermometers, etc.), improving readability. - The flowchart uses standard arrow connections, reflecting the order of operations. - The text layout is clear with distinct hierarchy and prominent highlights. This infographic fully presents the technical pathway, scientific principles, and practical applications of plant shoot tip cryopreservation, being both educational and practical, and suitable for researchers or students to study and reference.
